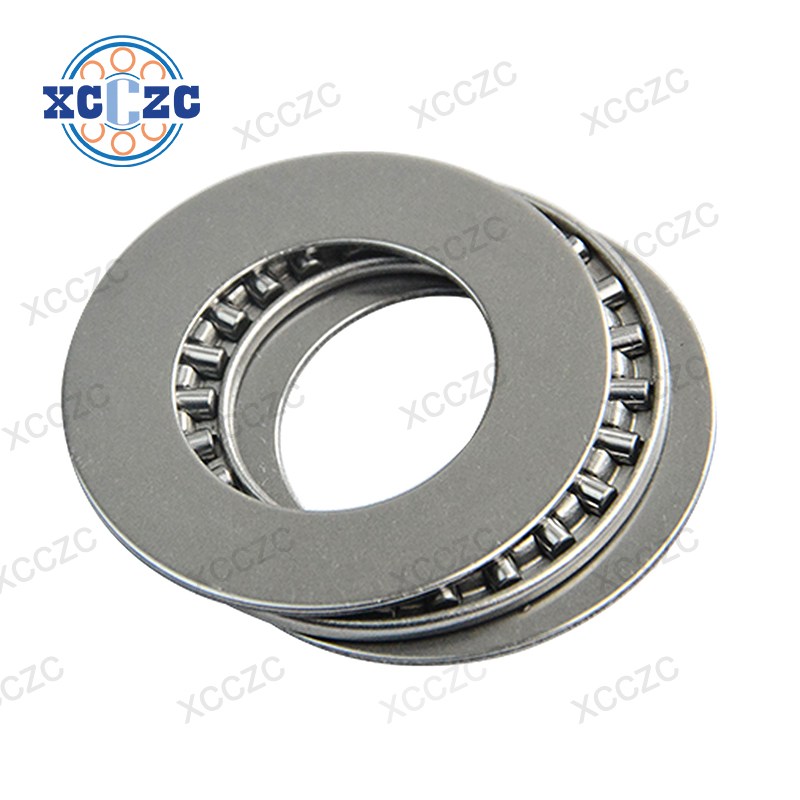

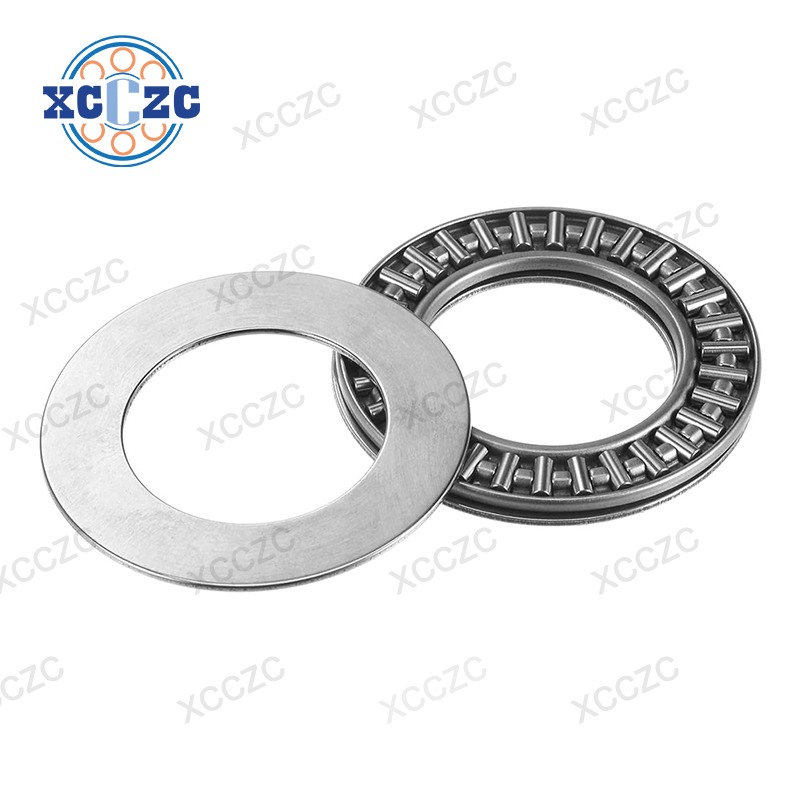

High Axial Load AXK2542 25x42x2mm Thrust Needle Roller Bearing

제품보기

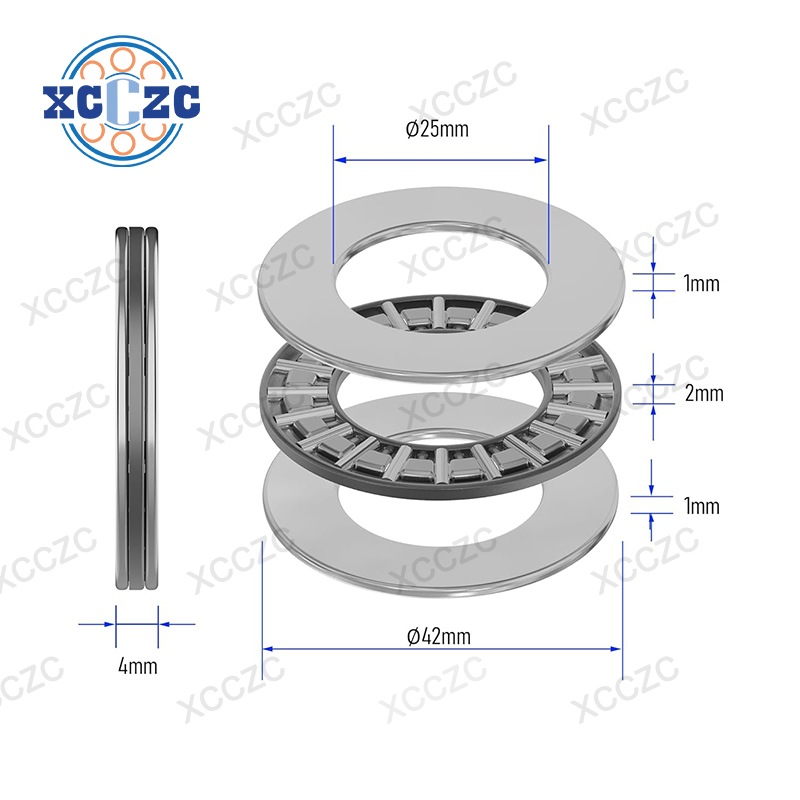

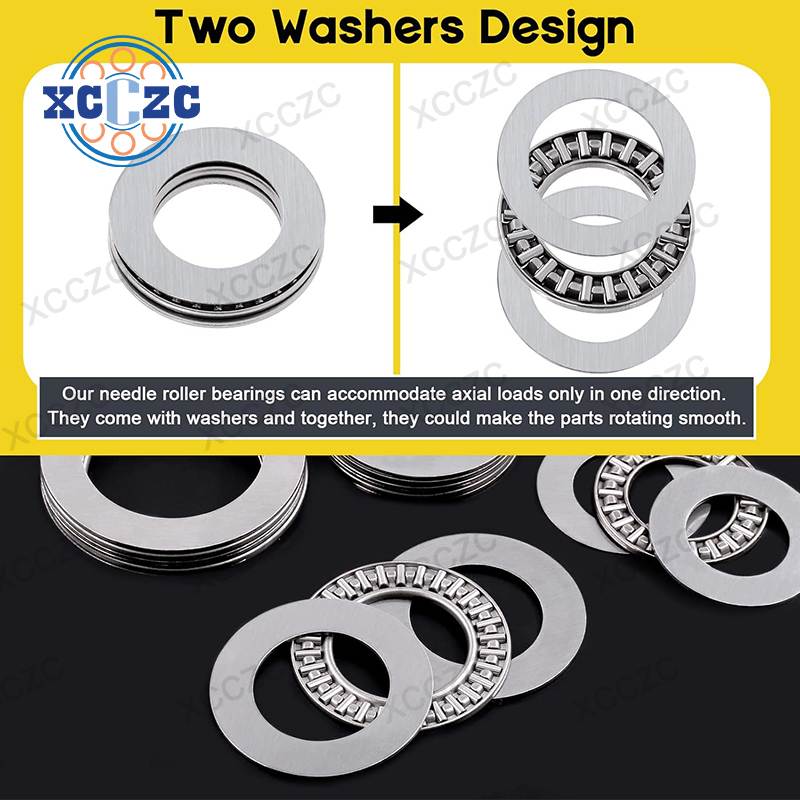

The AXK2542 is a single-direction needle roller and cage assembly designed to accommodate heavy axial loads and peak loads in one direction. With a 25mm bore, 42mm 외경, and only 2mm width, this bearing provides high axial stiffness within a minimum axial space. When installed between two hardened and ground machine surfaces that serve as raceways, 기존 스러스트 와셔보다 더 많은 공간을 차지하지 않습니다..

특징

Exceptional Static Load Capacity

최대 60 kN – Despite its 2mm thickness, the AXK2542 delivers a remarkable static load rating of 56.8–60 kN (약 6 metric tons). This load capacity makes it suitable for heavy-duty industrial applications where substantial axial forces must be supported in confined spaces.

High Dynamic Load Rating

최대 14.8 kN – The bearing supports a dynamic load rating of up to 14.8 kN, making it capable of handling sustained axial loads during continuous operation.

최소한의 축 공간에서 높은 강성

The large number of needle rollers provides high axial stiffness, minimizing deflection under load. This rigidity is critical for applications requiring precise axial positioning.

경량

Weighing just 7.0 에게 8.2 그램, the AXK2542 adds negligible mass to assemblies—a meaningful advantage in weight-sensitive applications such as aerospace components and high-speed machinery.

긴 서비스 수명

Engineered for Durability – The combination of hardened bearing steel rollers, 정밀 케이지 안내, and robust construction delivers long service life even under continuous heavy-duty operation. The fatigue load limit of 5.50–6.95 kN ensures reliable performance under repeated stress cycles.

기본 애플리케이션 시나리오

• Automotive Transmissions and Gearboxes
• 전기 모터 및 발전기
• Industrial Pumps
• Industrial Gearboxes and Speed Reducers
• Machine Tools and Precision Equipment
• Agricultural and Construction Equipment
• 로봇공학 및 자동화
• 자재 취급 장비
