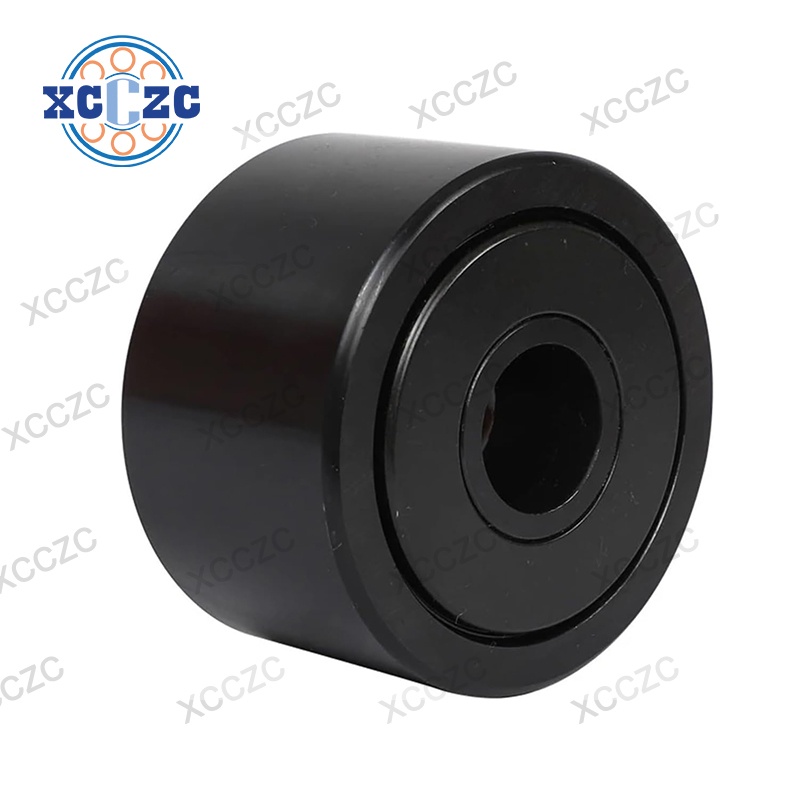

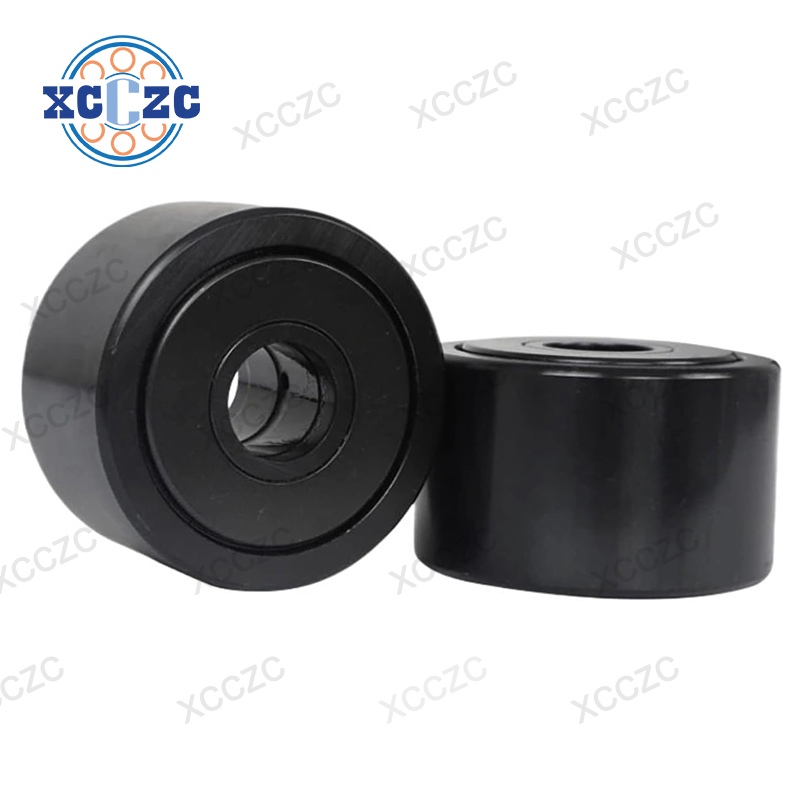

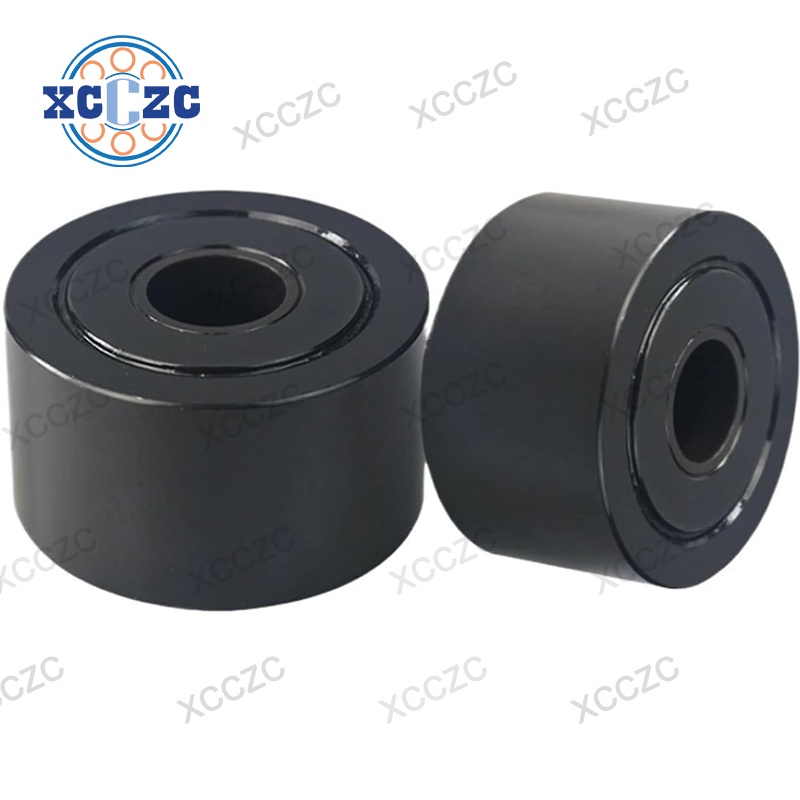

CYR 1 1/8 S Yoke-Type Cam Follower Full Complement Needle Roller Bearing

캠 팔로워 니들 롤러 베어링

Cam followers are anti-friction needle roller bearings specifically developed for use in cam or track roller applications. 일반베어링과 달리, they feature a heavy outer ring cross-section with a full complement of needle rollers, enabling them to handle significant radial loads while providing smooth, precise tracking along cam tracks and guide rails. The yoke-style design enables flush installation between supports, making it ideal for cam tracks, rail-following, and conveyor applications.

탁월한 부하 용량

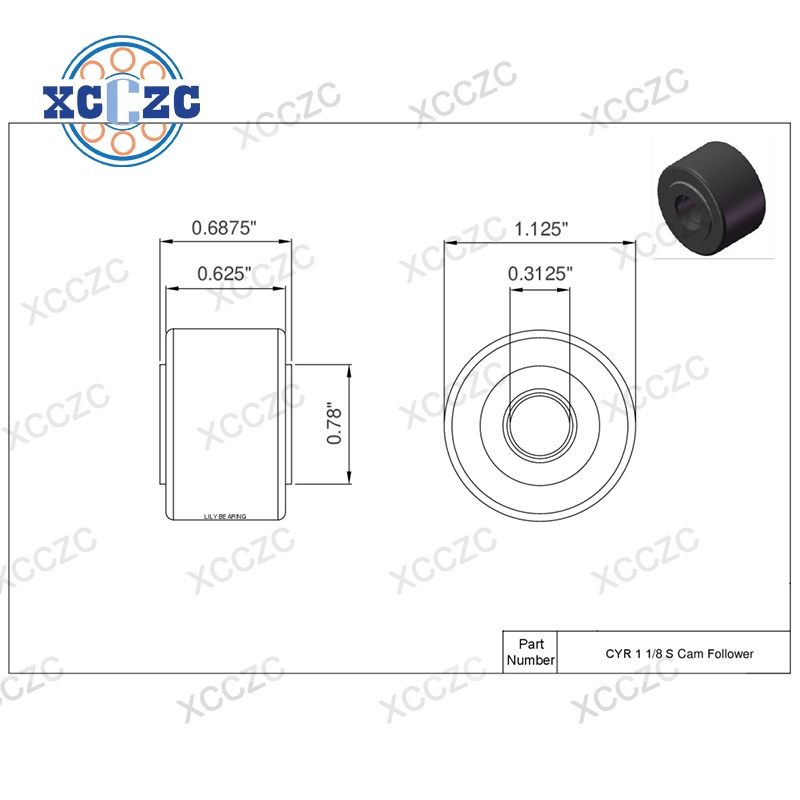

동적 정격 하중 2,225 lbf and a static load rating of 6,120 lbf, the CYR 1 1/8 S delivers outstanding load-carrying capability in a compact 1.125″ roller diameter package. The full complement needle roller design ensures maximum load distribution across all rolling elements.

Superior Contamination Protection

The integral seals provide effective protection against dust, dirt, 그리고 수분, making this bearing ideal for applications in dirty or wet environments. The seals retain lubricant while keeping contaminants out, extending bearing life and reducing maintenance frequency.

까다로운 환경에서 긴 서비스 수명

The combination of 52100 bearing steel, black oxide finish, full complement needle rollers, and effective sealing delivers exceptional durability in high-cycle, high-load applications. The bearing withstands the shock loads, 진동, and contamination common in industrial environments.

High Rigidity and Precision Tracking

The full complement needle roller design provides high radial rigidity, minimizing deflection under load and ensuring precise tracking along cam tracks and guide rails.

Ease of Installation and Maintenance

The yoke-style design allows for straightforward shaft mounting. The lubrication hole enables easy relubrication without bearing removal, simplifying maintenance and extending service life.

응용

The CYR 1 1/8 S yoke-type cam follower is a versatile component trusted across numerous industries:

• 캠 드라이브 및 메커니즘
• 컨베이어 시스템
• 자동화 장비
• Linear Motion Systems
• 공작기계
• Printing and Paper Machinery
• 농업 기계
• 자재 취급 장비
• Offset Printing
