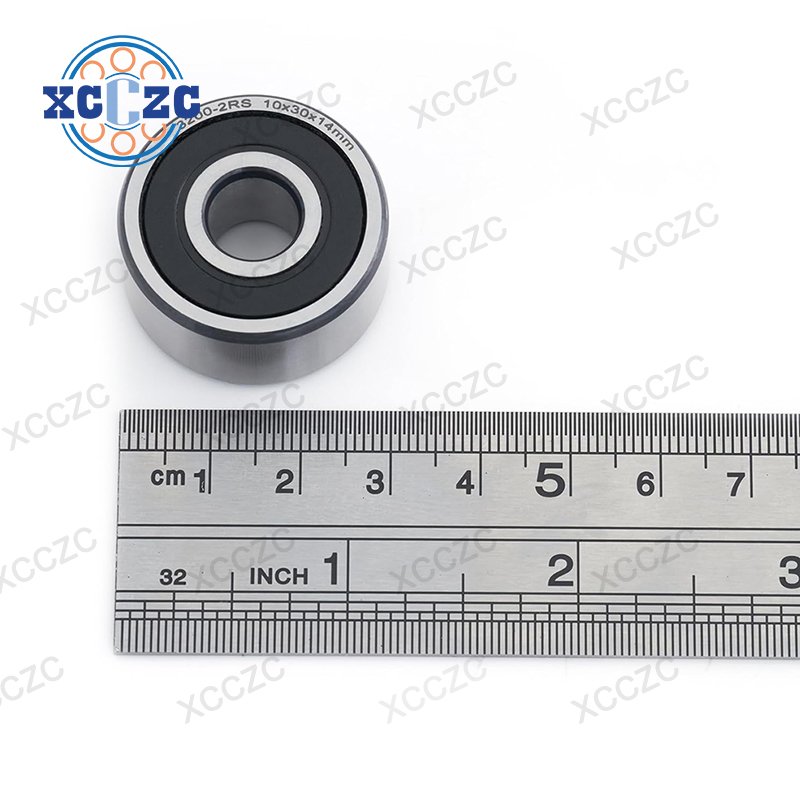

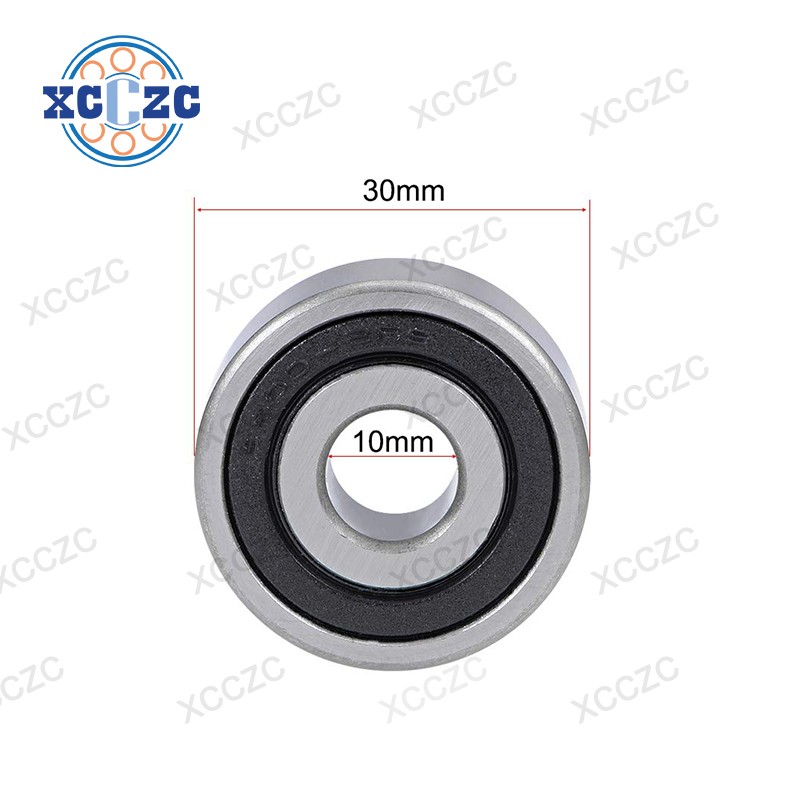

3200 Double Row Sealed Angular Contact Ball Bearing 10 × 30 x 14mm for Electric Motor, Agricultural Machinery

3200 Double Row Angular Contact Ball Bearing – Compact Powerhouse for Bidirectional Combined Loads

In precision machinery and industrial equipment, the need for a bearing that can handle substantial radial loads, bidirectional axial thrust, and tilting moments simultaneously is a common engineering requirement. The 3200 Double Row Angular Contact Ball Bearing offers a more elegant alternative: it integrates essentially the same internal geometry as a back-to-back pair of single row bearings, but within a single, compact, one-piece unit that requires significantly less axial space.

主な特長:

• High Combined Load Capacity
  As a double row design, this bearing excels at carrying high combined loads from the radial and axial directions. It is designed to accommodate radial loads and axial loads in both directions, making it particularly suitable for applications where load directions may reverse during operation.

• 高剛性
  Compared with single row angular contact ball bearings, double row angular contact ball bearings have better rigidity and can withstand overturning moments.

• Low Noise and Vibration
  The 3200 series is manufactured to low noise standards, with features including general applicability, the ability to withstand larger radial loads and bidirectional axial loads, and low noise operation.

• Space-Efficient
  The 3200 series offers the load capacity equivalent to a pair of single row angular contact bearings in a much more compact axial footprint. This space-saving design enables engineers to reduce overall equipment size, lower material costs, and create more streamlined assemblies.

• Extended Service Life
  With dynamic load ratings of 9.15 kN and static ratings of 5.35 kN, の 3200 is engineered for long-term reliability under moderate to heavy industrial duty cycles.
• Versatile Sealing Options

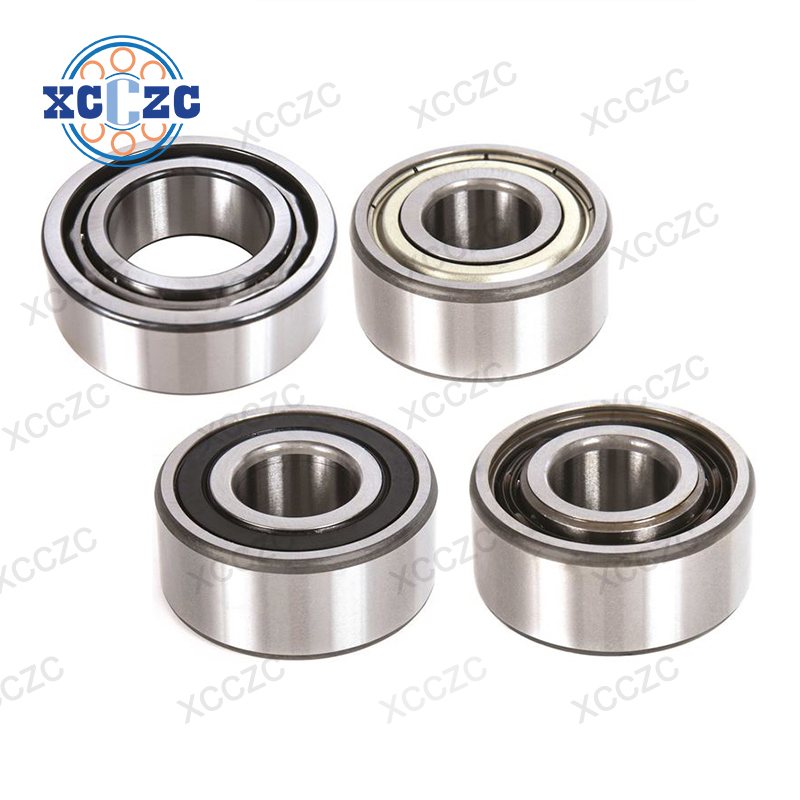

  The availability of open, shielded (ZZ), and sealed (2RS) configurations allows the same bearing series to be used across widely different operating environments—from oil-lubricated high-speed spindles to water-exposed pump applications.

アプリケーション

The 3200 series double row angular contact ball bearing is widely used across numerous industries where combined load handling and space efficiency are essential:

• Electric Motors
• Pumps and Compressors
• Fans and Blowers
• Industrial Gearboxes and Transmissions
• General Industrial Machinery
• Agricultural Equipment
• Robotics and Automation
• 工作機械スピンドル
