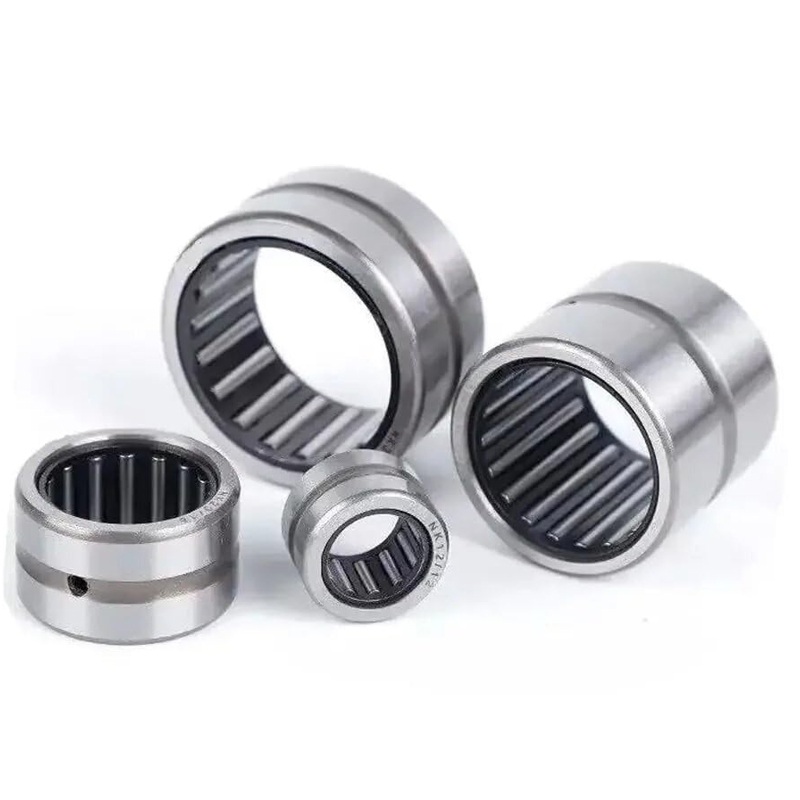

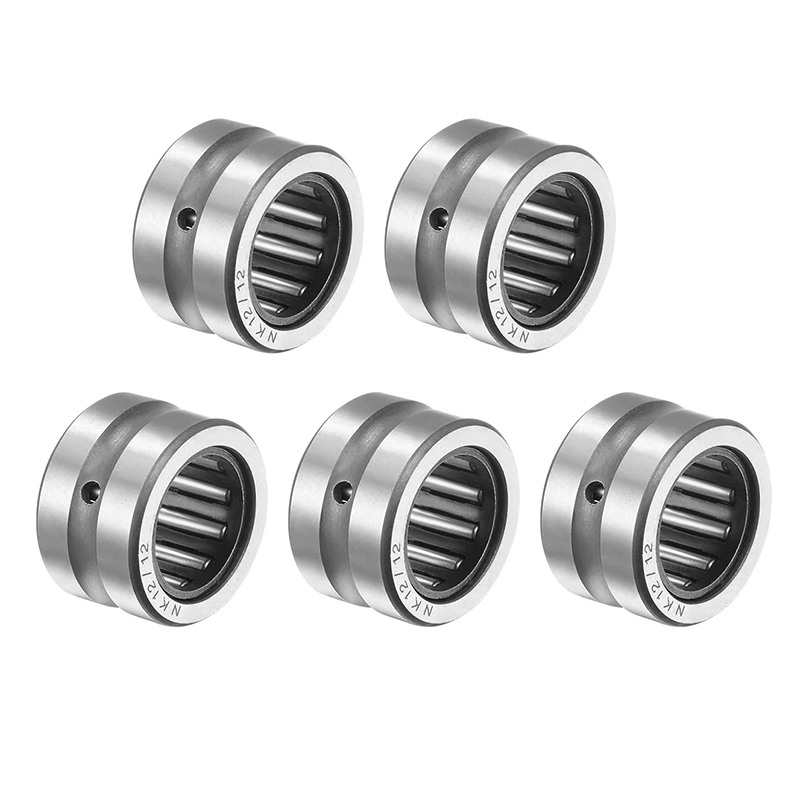

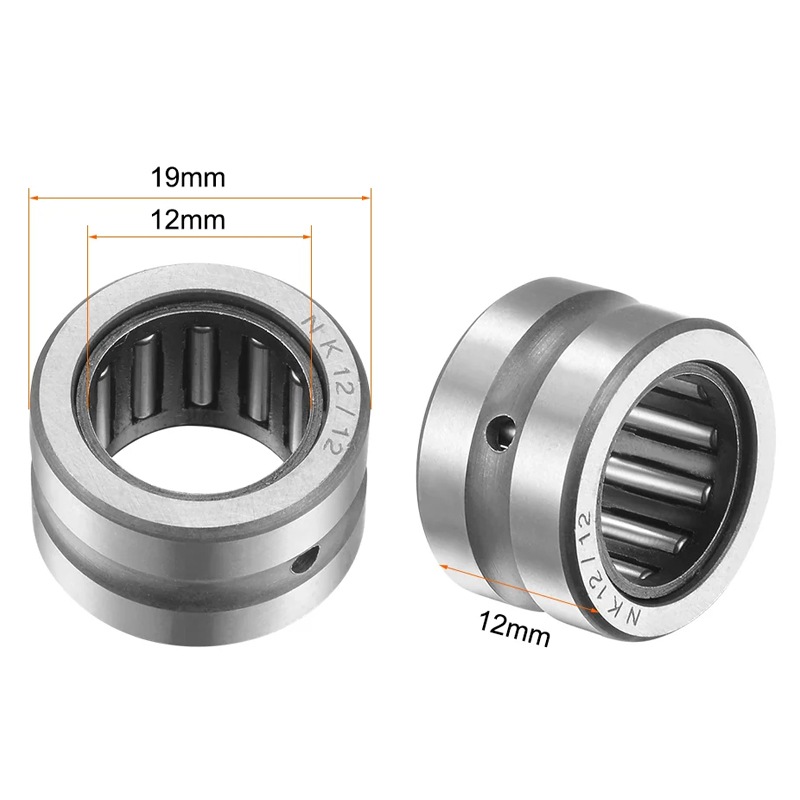

NK12/12 12mmx19mmx12mm Machined Ring Needle Roller Bearing

Product View

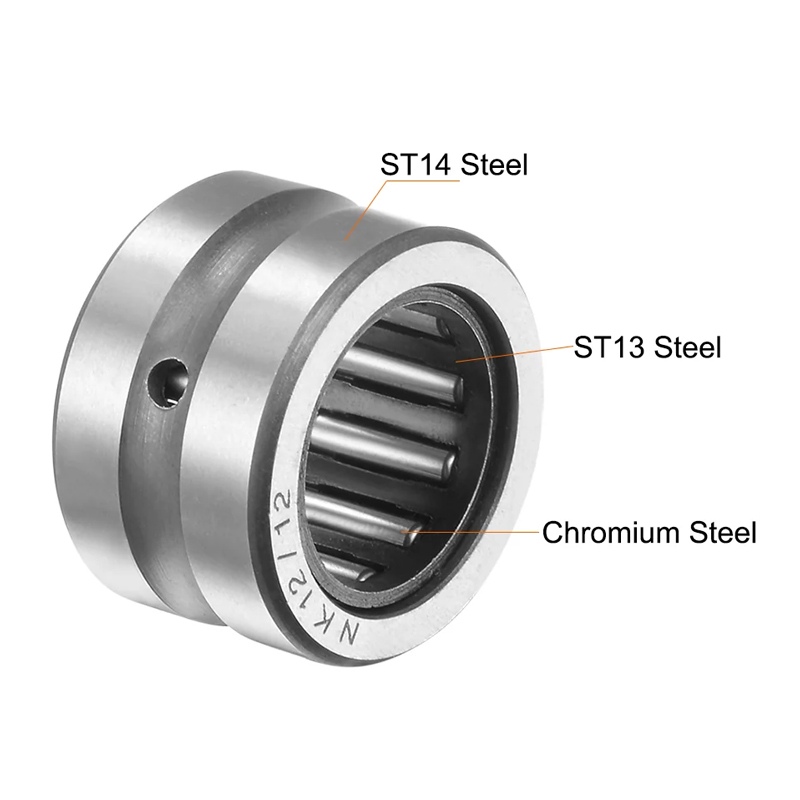

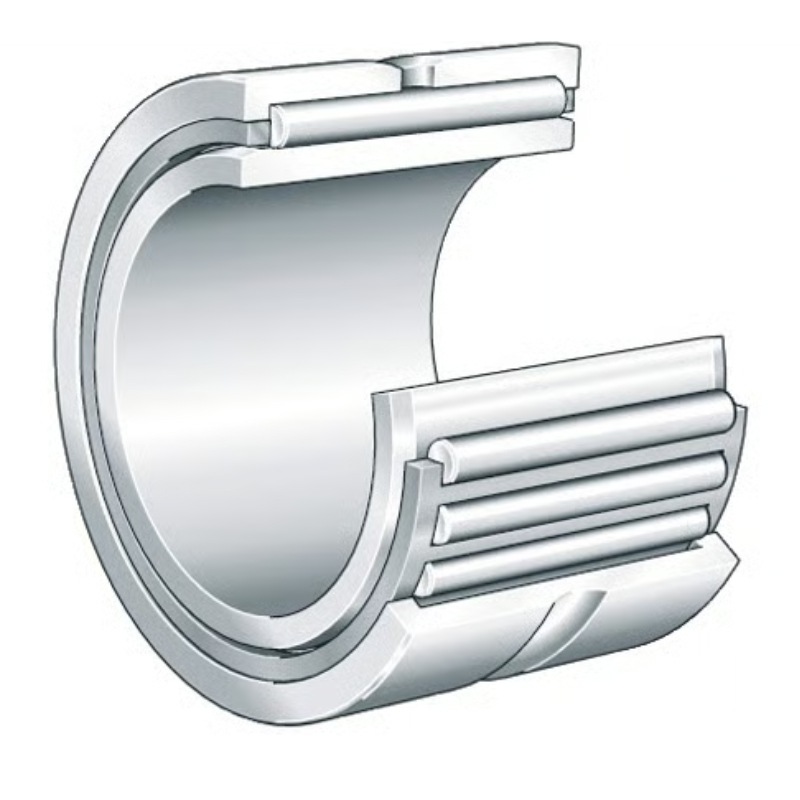

The NK12/12 is a single-row machined-ring needle roller bearing without an inner ring. This design eliminates the separate inner ring entirely — the hardened and ground shaft journal serves as the inner raceway. Needle roller bearings are characterized by cylindrical rollers that are small in diameter relative to their length, providing high load-carrying capacity in applications where radial space is limited. The ends of the rollers are relieved slightly to modify the line contact between the rollers and raceways, preventing stress peaks at the roller ends to extend bearing service life.

Key Features:

1. High Radial Load Capacity in Minimal Space
   The needle roller design packs a large number of slender rolling elements into a compact cross-section, delivering exceptional radial load capacity. With dynamic load ratings up to 7,200 N and static ratings up to 8,150 N, the NK12/12 provides high load capacity where standard ball bearings would be substantially larger.

2. High Stiffness and Rigidity
   The machined outer ring, combined with the elimination of the inner ring (allowing a larger effective shaft diameter), produces a very stiff bearing arrangement. This high rigidity is critical for applications requiring precise positioning and minimal deflection under load, such as gearboxes and transmission systems.

3. Ultra-Compact Radial Cross-Section
   The NK12/12’s radial cross-section is exceptionally slim, enabling bearing arrangements where radial space is severely limited. The bearing takes up minimal room while still delivering high load capacity and long service life.

4. Accommodates Axial Displacement
   The NK12/12 allows axial displacement of the shaft relative to the housing in both directions, limited only by the width of the shaft raceway. This makes it ideal as a non-locating bearing in shaft systems where thermal expansion or other factors require axial freedom.
5. High Limiting Speed
   With oil lubrication, the NK12/12 achieves limiting speeds up to 30,000 RPM, making it suitable for high-speed applications. With grease lubrication, speeds up to 19,000–26,500 RPM are achievable depending on the manufacturer and cage type.

Applications

The NK12/12 needle roller bearing is a versatile component trusted across numerous industries:

• Automotive Transmissions and Drivetrains

• Pumps and Compressors

• Industrial Gearboxes and Reducers

• Conveyor Systems and Printing Presses
• Automation and Robotics
• Consumer Electronics and Power Tools
• Electric Motors
• Agricultural Machinery
• Machine Tools
