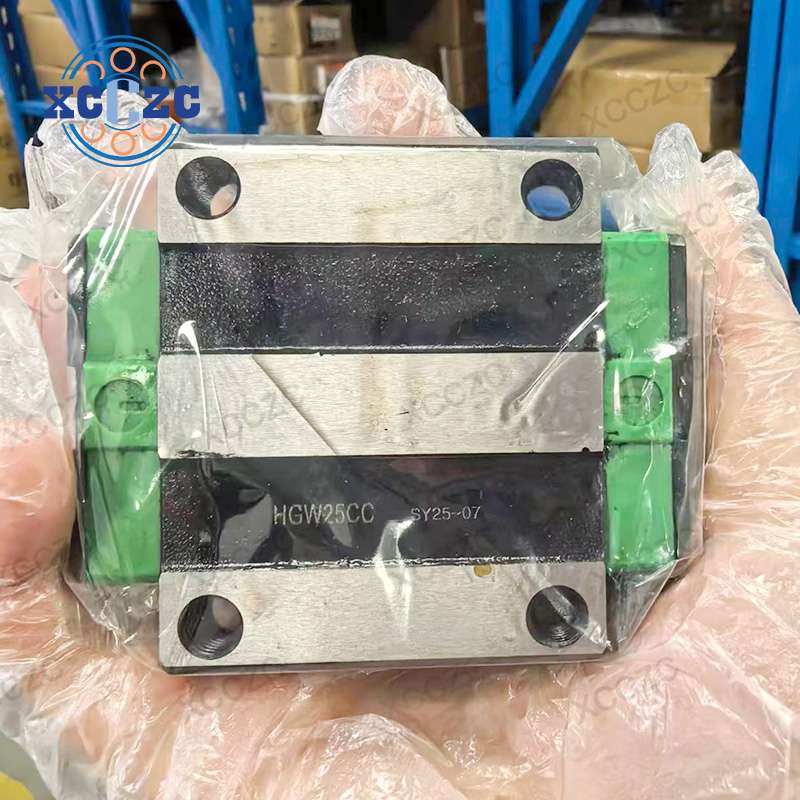

Heavy-Duty Flange Type HGW25CC Linear Guide Bearing Block

HGW25CC Linear Guide Bearing Block – Precision, Power, and Reliability for Heavy-Duty Linear Motion

The HGW25CC is a flange-type (W) linear block with a 25mm size designation and heavy load (CC) classification. It is designed to run along profiled linear guide rails using a recirculating ball bearing system, enabling smooth, accurate, and low-friction linear motion. Whether you are building CNC machining centers, industrial robots, semiconductor manufacturing equipment, or high-speed packaging lines, the HGW25CC delivers the performance and durability you need to keep your operations running at peak efficiency.

Key Features:

• Four-Row Circular-Arc Groove Design – The HGW25CC features an optimized four-row single-circular-arc contact design that delivers load capacity and rigidity significantly higher than competing products. This advanced geometry ensures superior load distribution across all rolling elements, maximizing performance and extending service life.

• Equal Load Capability in All Four Directions – Thanks to its four-row design, the HG series linear guideway provides equal load ratings in the radial, reverse radial, and lateral directions. This four-direction equal load capability allows the HGW25CC to handle complex loading scenarios with confidence, making it suitable for applications where loads come from multiple angles.

• Self-Aligning Capability – The circular-arc groove design incorporates a self-aligning feature that compensates for minor installation errors and surface irregularities. The elastic deformation of rolling elements and shifting of contact points absorb mounting surface imperfections, reducing stress concentrations and extending bearing life. This automatic alignment capability eliminates the need for ultra-precise mounting surfaces, saving time and cost during installation.

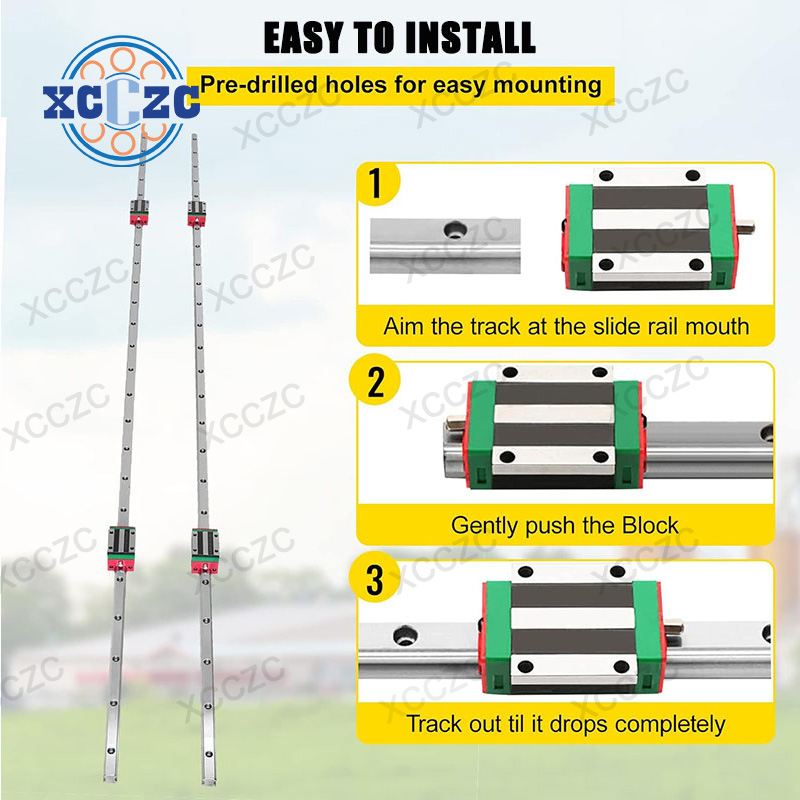

• High Rigidity and Structural Integrity – The HGW25CC is specifically engineered as a heavy-load (CC classification) linear block. Its optimized structural design and premium materials provide exceptional stiffness and resistance to deformation under load. The flange-type mounting configuration provides secure attachment and excellent stability, making this block ideal for applications requiring substantial weight support.

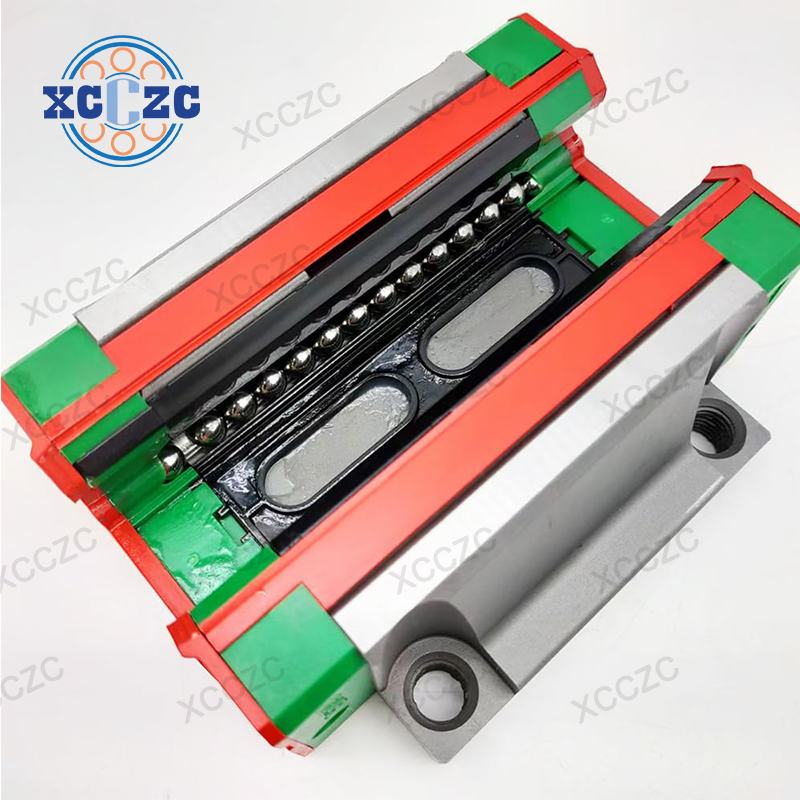

• Recirculating Ball System for Low Friction – Inside the HGW25CC, hardened steel balls circulate through precision-ground raceways in a continuous recirculating loop. This rolling contact design reduces friction dramatically—typically to around 1/50th of traditional sliding systems—resulting in smoother motion, reduced wear, and improved energy efficiency. The multi-row ball configuration ensures even load distribution and maintains smooth, uninterrupted motion.
• Precision Grades and Preload Options – The HGW25CC is available with Z0 light preload (0–0.02 C) for precision applications requiring minimal backlash. Accuracy class H (High) ensures premium manufacturing quality and tight dimensional tolerances. For even more demanding applications, higher accuracy classes (P, SP, UP) are available.

Wide Range of Applications

The HGW25CC linear guide bearing block is ideally suited for a wide range of industrial automation applications:

• CNC Machinery & Machine Tools
• Industrial Robots & Automation
• Semiconductor Manufacturing
• Packaging Machinery
• Medical Equipment
• Automotive Manufacturing
• General Industrial Machinery
• Logistics & Warehousing
