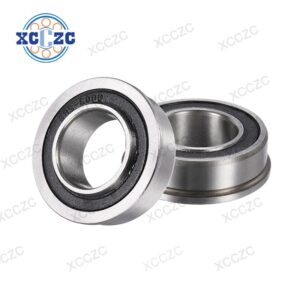

F6003 3/4″ x 1-3/8″ x 1/2″ Flanged 6003 Inch Deep Groove Ball Bearings

Product Overview

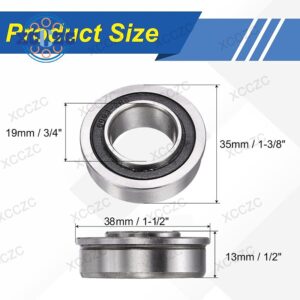

When your equipment relies on smooth, reliable wheel rotation in a compact housing, the F6003 flanged deep groove ball bearing delivers proven performance without complexity. With precise inch-series dimensions of 3/4″ bore and 1-3/8″ outer diameter, this bearing is specifically engineered for utility wheels, carts, and light-duty rolling systems where stable lateral positioning and easy installation are essential.

Key Features:

• Simplified Installation and Replacement
  The integrated flange eliminates the need for separate retaining rings or machined housing shoulders. The bearing seats directly against the hub face, making wheel replacement fast and straightforward in the field.

• Stable Lateral Retention
  The flange prevents the bearing from walking out of the housing under side loads, maintaining proper wheel alignment and reducing uneven tire wear.

• High Load Capacity
  With a dynamic load rating of 1,550 lbs and a static rating of 900 lbs, the F6003 handles the radial loads generated by utility wheels, carts, and light trailers with confidence.
• Corrosion-Resistant Chrome Steel
  The chrome steel construction resists rust and corrosion in outdoor environments, extending service life in lawn and garden equipment.
• Pre-Lubricated and Maintenance-Free
  Factory-filled with high-quality grease and sealed on both sides, the F6003 requires no initial lubrication and is maintenance-free under normal operating conditions.
• High-Speed Capability
  With a maximum speed rating of 21,000 RPM, the F6003 is suitable for a wide range of rolling equipment speeds.

Applications

The F6003 flanged bearing is specifically designed for utility wheels and rolling systems where a compact, flanged mounting solution is required:

• Lawn Mower Wheels
  The primary application. The F6003 is a direct replacement for worn wheel bearings in push and self-propelled lawn mowers.

• Wheelbarrows
  Provides smooth, reliable rotation under the heavy, uneven loads typical of wheelbarrow use.

• Hand Trucks and Dollies
  Maintains stable wheel positioning under the side loads generated during loading and maneuvering.

• Garden Carts and Utility Carts
  Designed for the outdoor environments and continuous rolling demands of garden and utility equipment.

• Rolling Tool Equipment
  Ideal for tool chests, rolling workbenches, and mobile storage units.
• Small Trailers
  Suitable for light-duty trailer wheels and rolling systems.
• Light-Duty Rolling Systems
  Any compact wheel application requiring stable lateral positioning and simplified installation.
