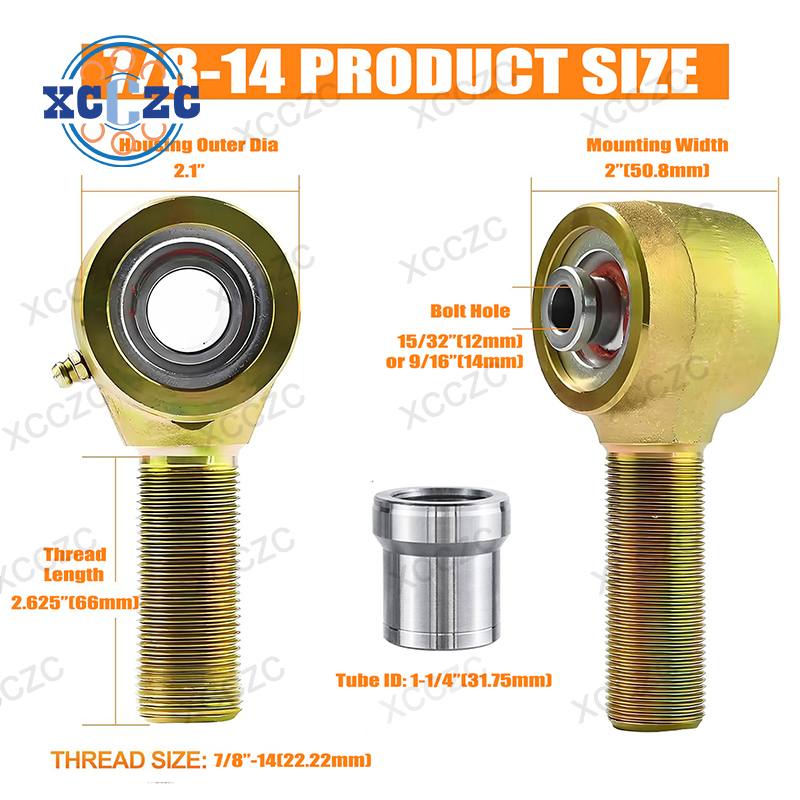

7/8 Inch Forged Chromoly Johnny Joint Rod End for Jeep Racing Sway Bars Suspension Links

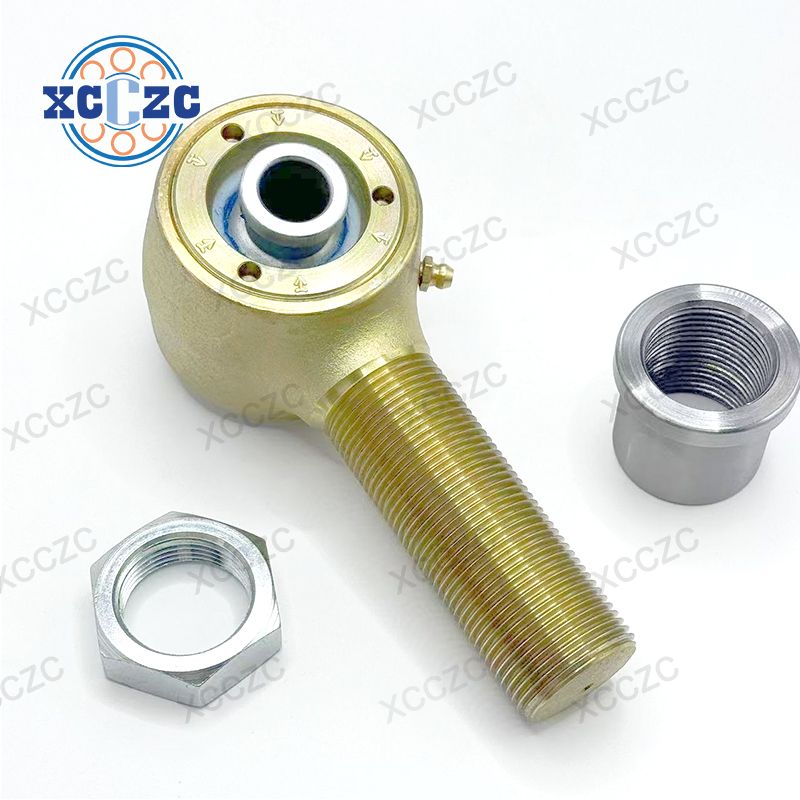

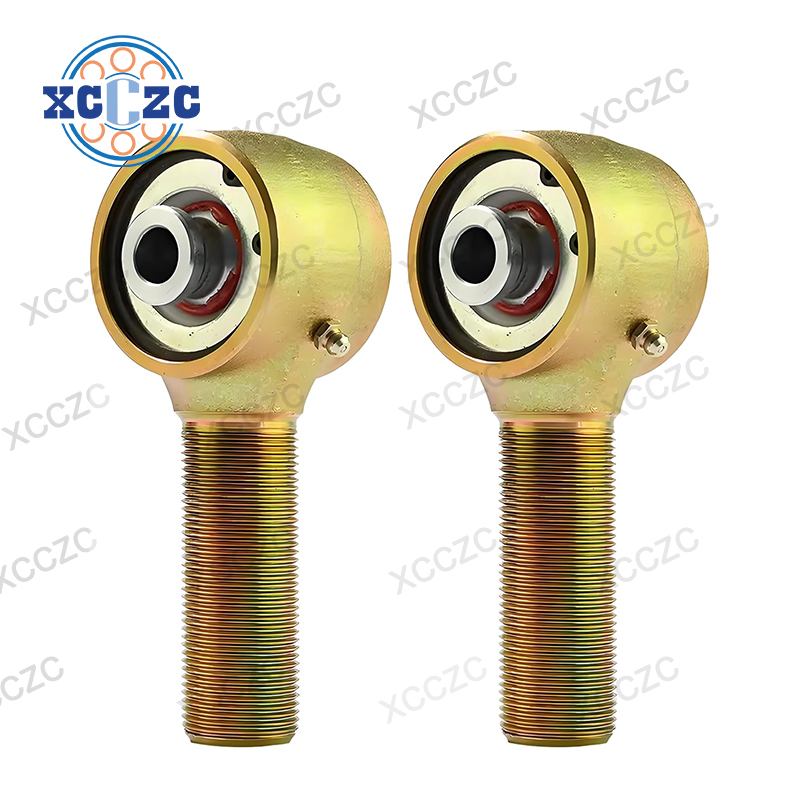

7/8″ Johnny Joint Rod End – The Ultimate Heavy-Duty Articulating Joint for Demanding Suspension Systems

The Johnny Joint has become the gold standard for builders and fabricators who demand reliable, greasable, and rebuildable suspension joints. It performs exceptionally well on and off the road. Unlike conventional Heim joints, the Johnny Joint uses a high-density urethane bushing that surrounds the inner ball. 결과적으로, it delivers up to 40 degrees of unrestricted articulation, compared with the typical 22 degrees offered by standard Heim joints. 동시에, it provides smoother movement, quieter operation, and improved ride comfort.

Uncompromising Construction for Extreme Durability

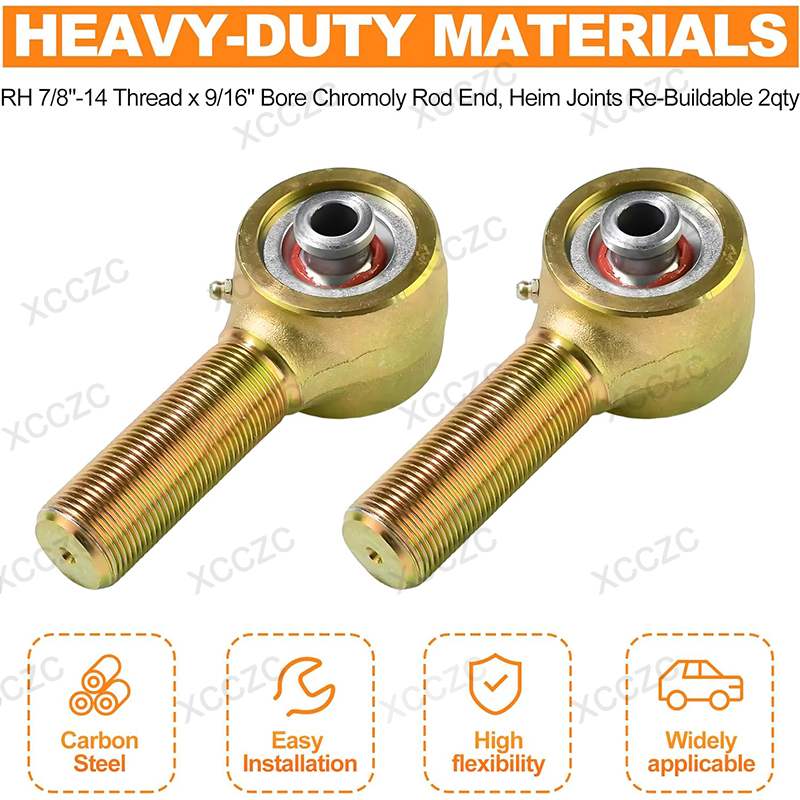

One-Piece Forged Steel Body

High-strength forged steel forms the Johnny Joint body. Manufacturers heat-treat the body to maximize strength and resist deformation under heavy loads. The one-piece design removes potential failure points found in multi-piece joints. 따라서, it delivers dependable performance in demanding environments. 게다가, the zinc-plated finish protects the joint from corrosion, rust, and harsh weather conditions.

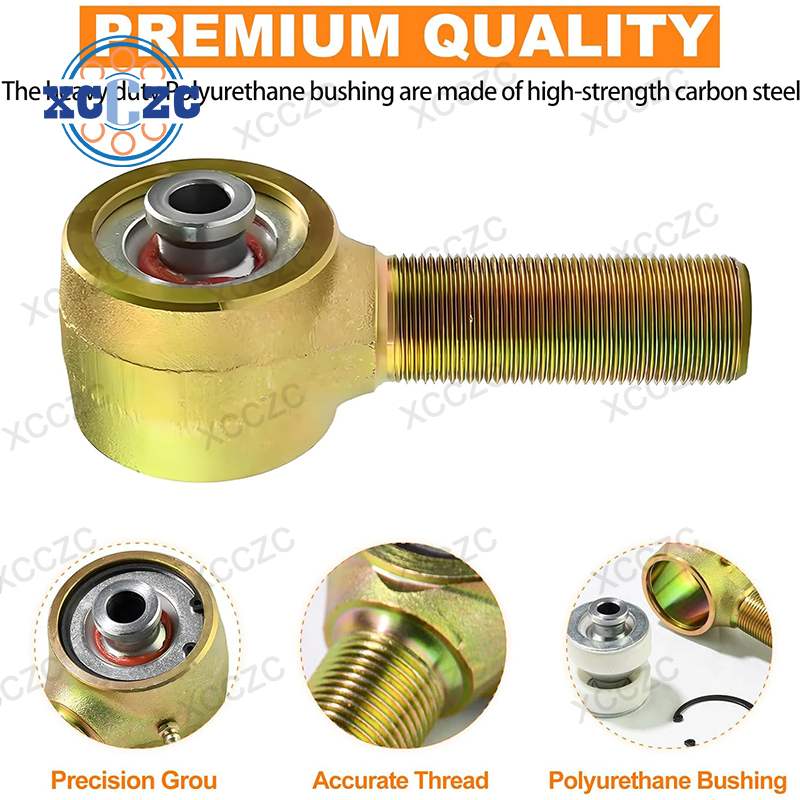

High-Density “Tough 88” Urethane Bushing

A high-density Tough 88 urethane bushing surrounds the inner ball. This durable material resists weather exposure and long-term wear. Unlike traditional metal-to-metal Heim joints, it cushions impacts and absorbs shock loads. 뿐만 아니라, it reduces vibration and minimizes noise throughout the suspension system. 결과적으로, you enjoy a smoother ride on the road while maintaining excellent off-road capability. Narrow-body versions use a one-piece, higher-density bushing to support heavy-load applications such as traction bars.

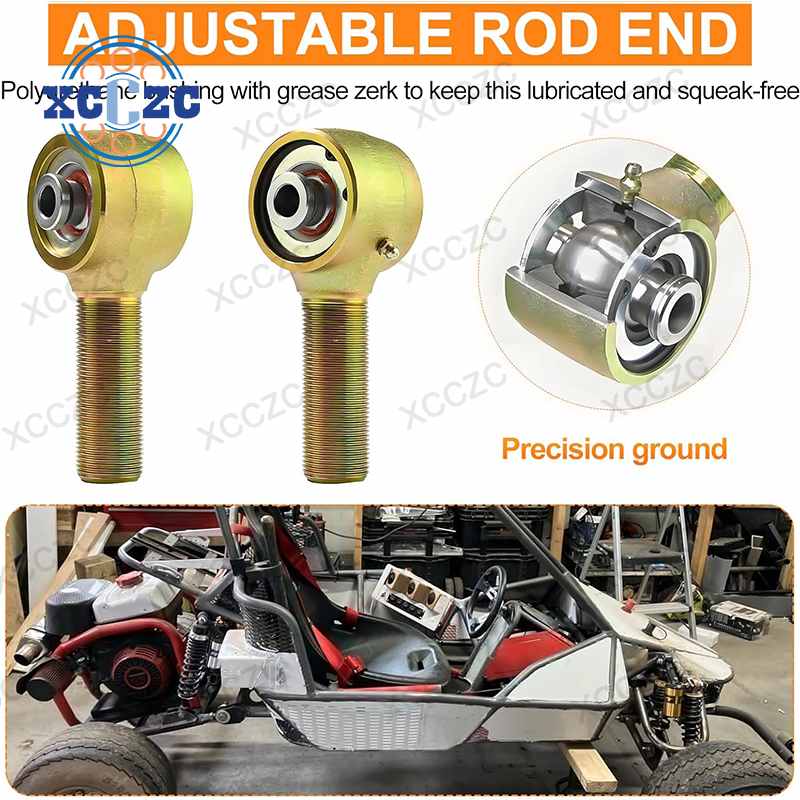

Heat-Treated Hard Chrome-Plated Ball

High-quality alloy steel forms the inner pivot ball. Manufacturers heat-treat and precision-grind the ball before applying a hard chrome finish. This process reduces friction and improves wear resistance. 게다가, it extends the service life of the joint under continuous heavy loads and frequent articulation.

Forged Steel Outer Shell Options

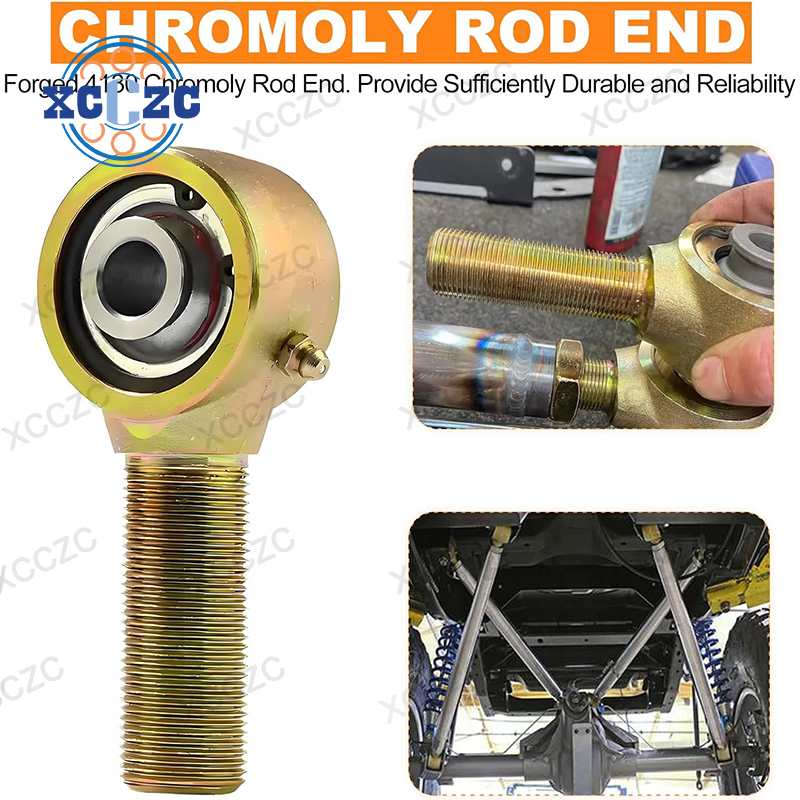

For the most demanding applications, we offer Johnny Joints with 4130 chromoly outer shells, heat-treated steel balls, 그리고 4340 chromoly side-retaining washers. This premium material combination provides an excellent strength-to-weight ratio. 그러므로, it is an ideal solution for racing vehicles and extreme off-road applications.

Wide Range of Applications

The 7/8″ Johnny Joint supports a variety of heavy-duty applications. Its large articulation angle, rebuildable design, and exceptional durability make it an excellent choice for demanding environments.

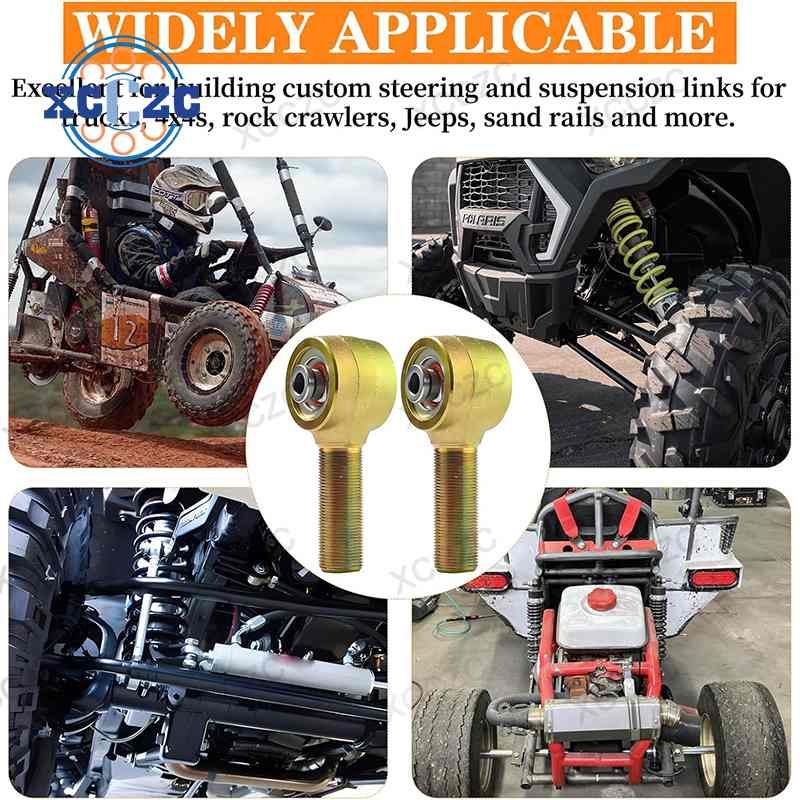

Off-Road and 4×4 Suspension Systems

Builders widely use Johnny Joints in heavy-duty off-road suspension systems. They are commonly installed on Jeep Wrangler JL, Jeep Wrangler JK, 그리고 Jeep Gladiator JT front upper control arms. 게다가, they perform exceptionally well in custom 4×4 suspension links, track bars, and traction bars.

Heavy-Duty Linkages and Steering

The high load capacity and wide articulation range make the Johnny Joint ideal for steering linkages, panhard bars, and other chassis connections. 따라서, drivers benefit from improved control, greater durability, and consistent suspension performance.

Custom Chassis and Fabrication

Fabricators rely on Johnny Joints when designing custom suspension systems, structural linkages, and roll cage connections. Unlike standard rod ends, these joints provide greater articulation, higher durability, 그리고 더 긴 서비스 기간.

Racing and Motorsports

Professional racing teams often choose the 4130 chromoly and billet steel versions for competitive applications. These premium materials reduce weight while maintaining outstanding structural strength. 결과적으로, they perform reliably under extreme racing conditions.

Industrial Equipment

The Johnny Joint is not limited to automotive applications. Its rugged construction and rebuildable design also make it suitable for industrial machinery, agricultural equipment, and heavy construction equipment. 그러므로, it provides a dependable solution for demanding linkage systems across multiple industries.
