SBR20UU Slide Blocks Linear Guide Rail and Bearings Kit for Automated CNC Router Machines

SBR Series Linear Rail Guide – The Complete, Ready-to-Mount Linear Motion Solution

SBR rails feature a rigid aluminum base with a hardened steel shaft embedded along the top. This design provides full support across the entire length, eliminating deflection and allowing longer travel distances. Paired with SBR series linear bearing blocks (e.g., SBR20U, SBR16U), this system delivers low-friction, high-precision linear movement for a wide range of automation and light-industrial applications.

主な特長:

• Complete Linear Rail Kits: This linear rail set includes SBR20 rail shafts and SBR20UU blocks. Sliding blocks are used cooperatively with rails, smooth sliding provided by the inside linear bearing.

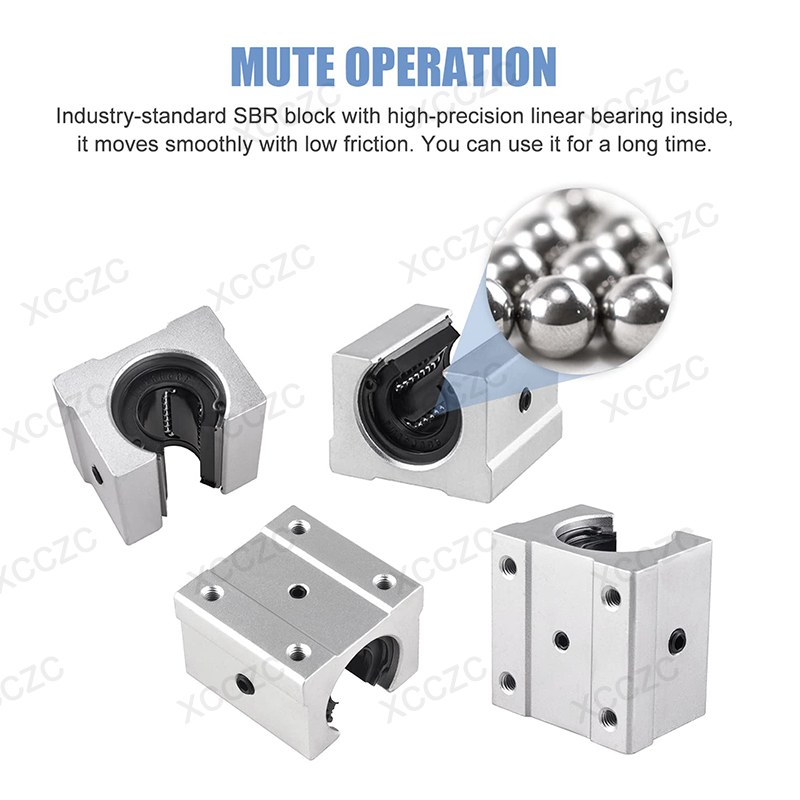

• スムーズ, Low-Friction Linear Motion:The SBR bearing block uses recirculating steel balls that run on the hardened, ground shaft. Friction coefficient is as low as 0.001 に 0.004, allowing smooth movement even under heavy loads. Unlike sliding guides, there is no stick-slip effect – ideal for servo or stepper driven axes.

• High Load Capacity & Rigidity:The combination of a large-diameter shaft and a wide bearing block footprint provides excellent load carrying capacity in both radial and moment directions. SBR20U blocks can handle several hundred kilograms of radial load per block. When used in pairs, the system resists twisting and off-center forces.

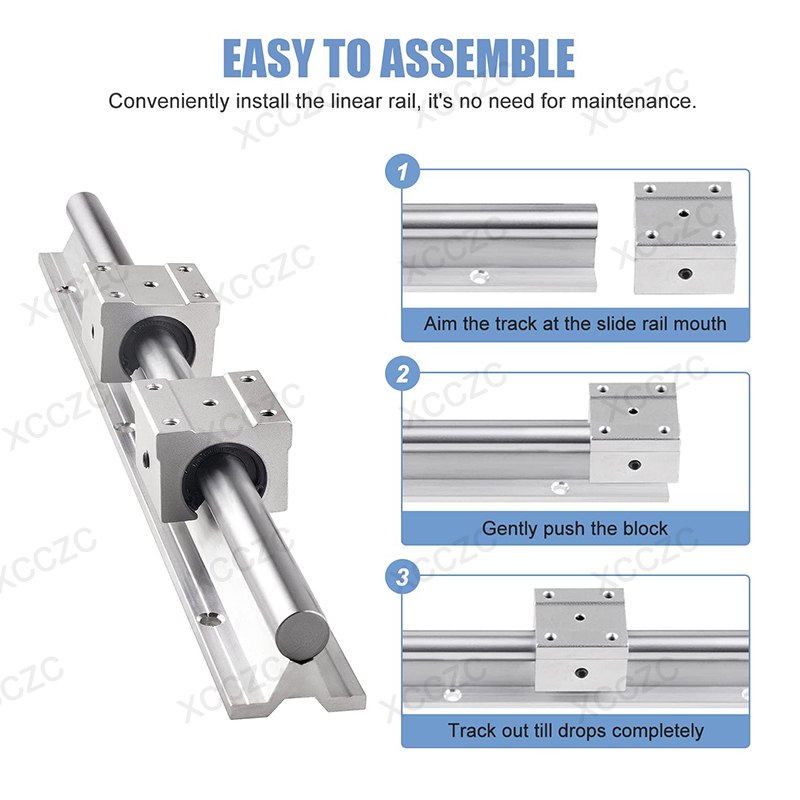

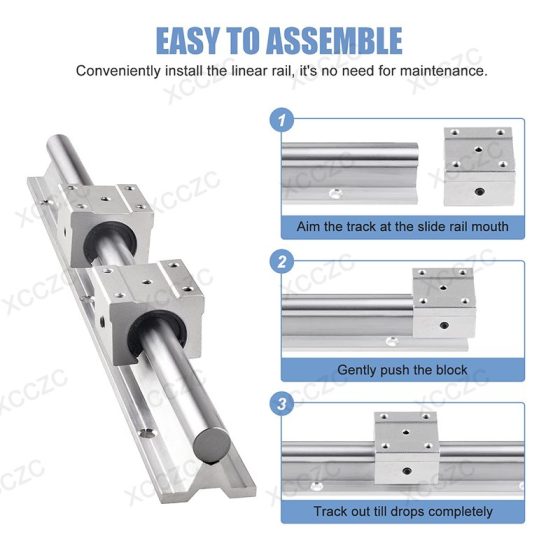

• Easy to Install:The aluminum rail comes with counterbored holes at regular intervals (typically every 100-150 mm). You simply bolt the rail directly to your machine’s frame – no need to machine precise shaft support blocks or weld brackets. This dramatically reduces fabrication time and cost.

• Wide Application: The linear guide rail is widely used in automation machinery such as DIY CNC routers, lathes, machine tools, bending machines, laser welding machines, etc. Also, applicable for large-scale transmission equipment, including industrial robots, cracker machines.
