6200 Zirconia ZRO2 Full 10x30x9 mm Ceramic Ball Bearings

Présentation du produit

Unlike hybrid bearings that combine ceramic balls with steel rings, this is a 100% roulement entièrement en céramique. The inner ring, bague extérieure, and all rolling elements are manufactured entirely from Zirconium Oxide (ZrO₂) . No steel components remain. This all-ceramic construction unlocks a level of environmental tolerance and operational freedom that no metal-based bearing can approach.

Principales fonctionnalités:

• Runs Completely Dry – Zero Lubrication Required
  The most significant advantage of a full ceramic bearing is its ability to operate without any oil or grease. ZrO₂ has inherent self-lubricating properties and a low coefficient of friction. This eliminates lubricant contamination risks in food processing, pharmaceutique, and semiconductor applications. It also removes the maintenance burden of greasing schedules—the bearing simply runs, year after year, without intervention.

• Ultimate Corrosion Resistance – Fully Inert to Chemicals
  ZrO₂ is chemically inert in most acids, alcalis, and saline solutions. The only notable exception is hydrofluoric acid (HF). Unlike steel bearings that rust and pit within days of exposure to moisture, le 6200 ZrO₂ maintains its precise geometry and smooth surface indefinitely in wet, salty, or chemically aggressive environments. This makes it ideal for chemical pumps, équipement marin, desalination plants, and food processing washdown areas.

• Electrically Insulating – Eliminates Arcing Damage
  ZrO₂ is a complete electrical insulator. In variable frequency drive (VFD) moteurs, générateurs électriques, and any equipment where stray currents pass through the bearing, steel bearings suffer catastrophic arcing damage (fluting). Le 6200 ZrO₂ eliminates this failure mode entirely, making it essential for modern electric motors and generators.

• Non-Magnetic – Safe for Sensitive Instrumentation
  Unlike steel bearings that retain residual magnetism and attract metallic debris, ZrO₂ is completely non-magnetic. This is critical for MRI machines, accélérateurs de particules, microscopes électroniques, and any precision instrumentation where magnetic fields must be strictly controlled.

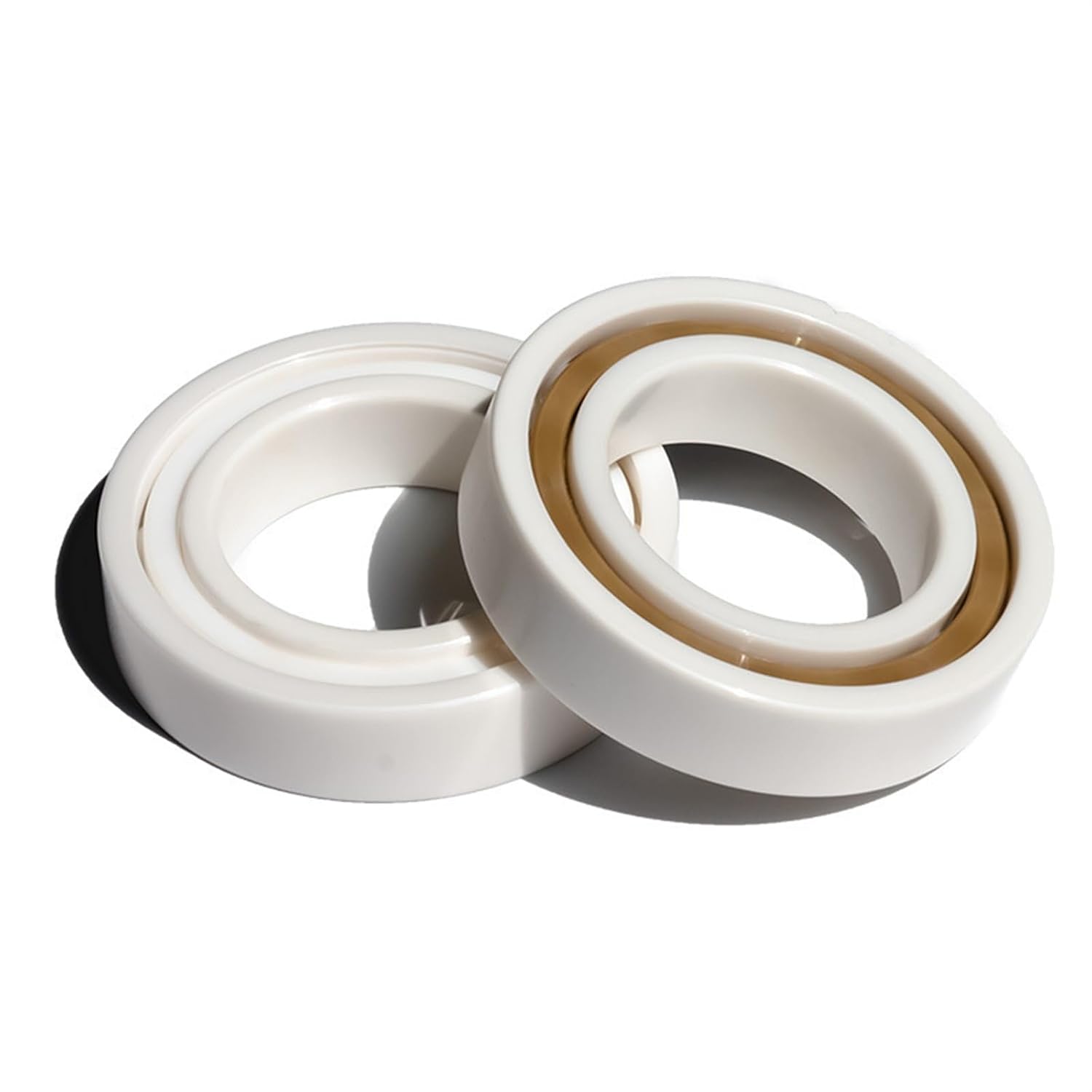

• Available with PTFE Seals and PEEK Cage
  For enhanced protection, le 6200 ZrO₂ is available sealed on both sides with PTFE seals and can be fitted with a PEEK cage. PEEK offers excellent chemical resistance, stabilité à haute température (up to 300°C), and radiation resistance—complementing the ceramic material’s own extreme properties.

Applications

• Traitement chimique

• Fabrication de semi-conducteurs

• Medical and Pharmaceutical

• High-Temperature Equipment

• Transformation des aliments

• Marine and Offshore
• Moteurs et générateurs électriques
• Instruments de précision
