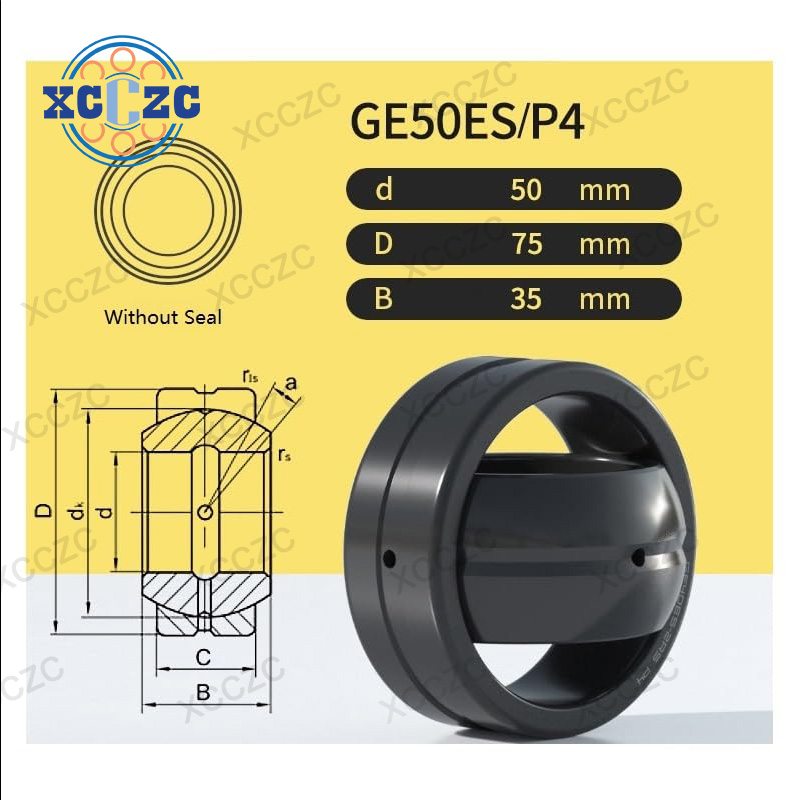

Rodamiento liso esférico radial de alta resistencia GE50ES 50x75x35 mm

GE50ES Spherical Plain Bearing – Engineered for Heavy Loads and Extreme Misalignment

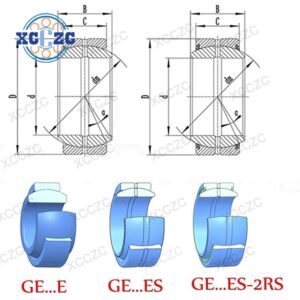

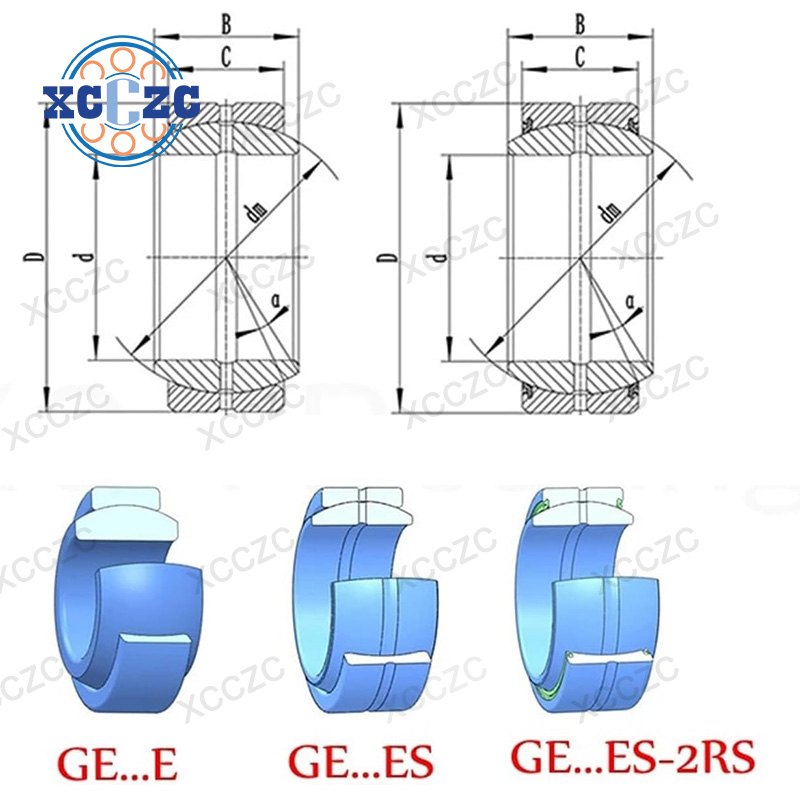

The GE50ES is a radial spherical plain bearing — a two-piece plain bearing consisting of an inner ring with a sphered convex outside diameter and an outer ring with a correspondingly sphered concave inside surface. The GE50ES is a radial spherical plain bearing — a two-piece plain bearing consisting of an inner ring with a sphered convex outside diameter and an outer ring with a correspondingly sphered concave inside surface. They rely on sliding contact between the inner and outer rings, making them particularly suitable for bearing arrangements where alignment movements between shaft and housing must be accommodated, or where oscillating or recurrent tilting or slewing movements are required at relatively slow sliding speeds, often accompanied by heavy loads.

Características clave:

• Capacidad de carga excepcional – 780 kN Static Rating – With a basic static load rating of 780 kN and a dynamic load rating of 156 kN, the GE50ES delivers extraordinary load-carrying capability for its compact 50×75 mm envelope. This load capacity makes it suitable for heavy machinery applications where standard bearings would be undersized.
• Accommodates Heavy Static, Alternating, and Impact Loads – The steel/steel sliding contact design is specifically engineered to handle heavy static, alternating, or impact loads. Unlike rolling-element bearings that can suffer from brinelling (sangría de superficie) under shock loads, the GE50ES’s plain bearing design distributes loads across large-area sliding surfaces, making it exceptionally resistant to impact damage.
• Alojamiento superior en desalineación – Up to 6° – The spherical geometry of the GE50ES allows angular misalignment of up to 6° in any direction. This eliminates the need for precision-aligned mounting surfaces, simplifica el montaje, and compensates for shaft deflection and structural deformation during operation.
• Vida útil extendida – The lubrication grooves and holes allow for convenient relubrication. Regular maintenance extends service life and ensures consistent performance even in the most demanding applications.

• Robust Construction for Harsh Environments – The hardened, phosphatized bearing steel construction provides excellent resistance to wear, corrosión, and deformation. The GE50ES performs reliably in dirty, húmedo, and high-vibration environments where other bearing types would fail prematurely.

Amplia gama de aplicaciones

The GE50ES spherical plain bearing is a versatile, heavy-duty component trusted across multiple demanding industries:

• Equipos de construcción y movimiento de tierras
• Hydraulic Cylinders and Systems
• Maquinaria agrícola
• Industrial Machinery and Automation
• Automoción y Transporte
• Mining and Metallurgical Equipment
• Equipos marinos y offshore
