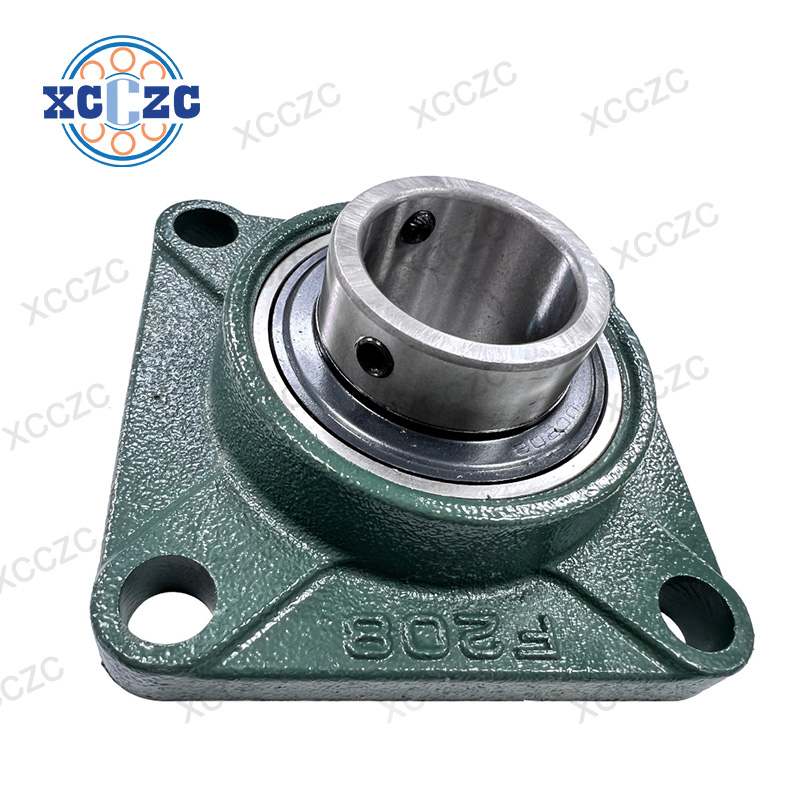

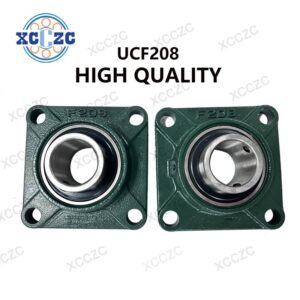

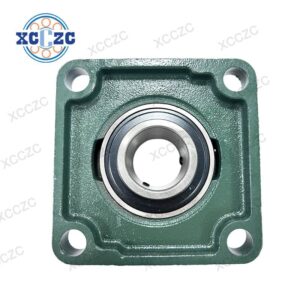

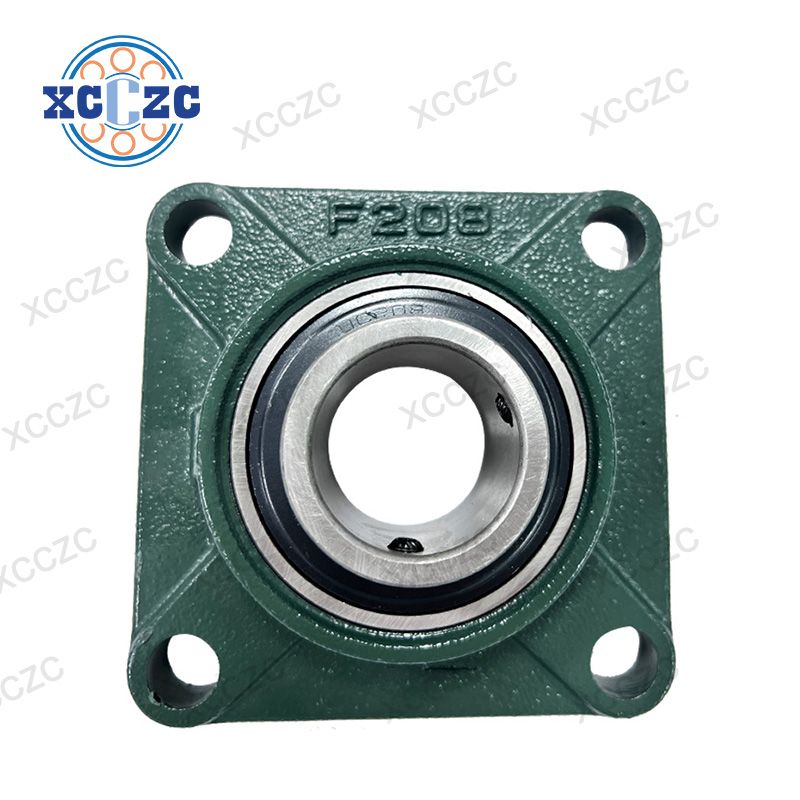

UCF208 40mm Bore Cast Iron Housing Flange Mounted Pillow Block Bearings

UCF208 Pillow Block Bearing Unit – 4-Bolt Flange Mount, 40mm Bohrung, Cast Iron Housing. Pre-lubricated, double-sealed, self-aligning.Easy drop-in replacement for industrial conveyors, agricultural machinery, fans, and pumps. Maintenance-friendly and corrosion-resistant.

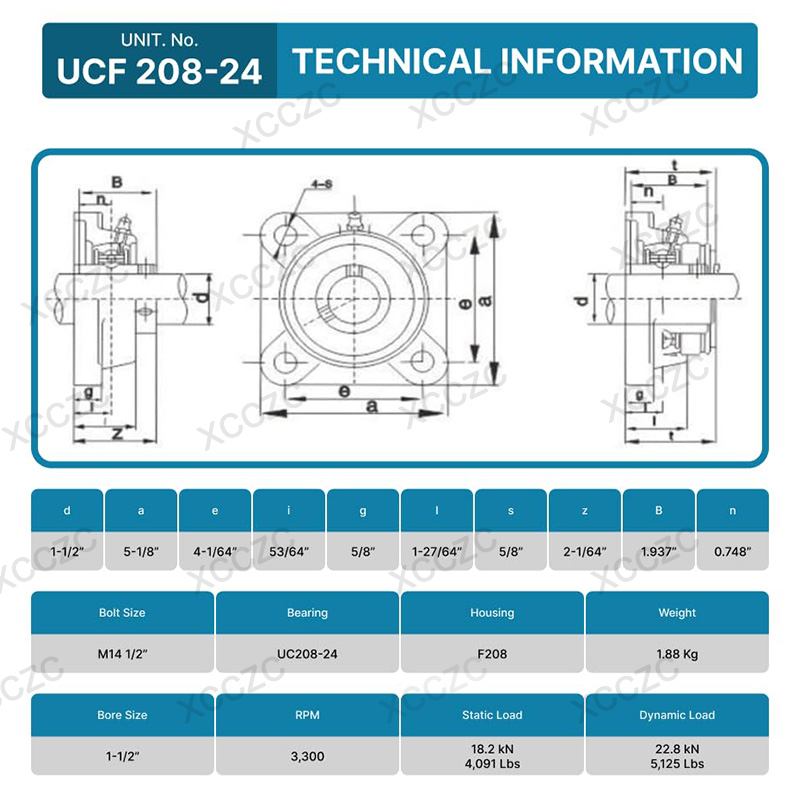

Bearing Model: UCF208
Typ: 4?bolt flange mounted bearing unit (pillow block style with flange)
Bore Diameter (D): 40 mm / 1.5748 In
Housing Material: High?grade cast iron
Insert Bearing Model: UC208 (deep groove ball bearing with extended inner ring)
Insert Bearing Material: Chrome steel (GCr15) – bearing rings and balls
Seals: Double rubber seals (2RS) on both sides of the insert bearing
Bolt Hole Size: 4 holes, each 16 mm diameter for M14 bolts
Gewicht: Approx. 2.8 – 3.2 kg per unit

Category: Stehlager

Beschreibung
Rezensionen (0)

UCF208 Flanged Bearing Unit – Rugged, Zuverlässig, and Ready for Heavy-Duty Service

Designed for easy installation and dependable operation in demanding environments, the UCF208 is a popular choice across industrial, agricultural, and material handling sectors.

Hauptmerkmale:

Complete Unit – Ready to Install
The UCF208 arrives fully assembled, lubricated, and sealed. No need to press bearings into housings, calculate fits, or add grease. The 4-bolt flange design allows for quick, secure mounting directly to flat surfaces. Four bolt holes (16mm diameter) accept M14 bolts, providing a strong, vibration-resistant attachment.
Self-Aligning Feature – Compensates for Misalignment
The insert bearing’s outer ring has a spherical convex shape that mates with a concave spherical surface inside the housing. This allows the bearing to self-align up to ±2° to ±3° of angular misalignment. If your shaft or mounting plate is not perfectly straight, the bearing adjusts automatically – reducing stress on the shaft, preventing premature wear, and extending bearing life.
Heavy-duty cast iron enclosure – Durable and long-lasting
This enclosure is precisely cast from cast iron, featuring excellent strength, shock absorption properties, and resistance to deformation under load. The enclosure has also undergone painting treatment to resist rust and corrosion in regular industrial environments. For harsher conditions (outdoor, exposure to water, contact with chemicals), we offer optional stainless steel or coated enclosures.
High load capacity and speed performance
The UCF208 can withstand large radial loads and moderate axial loads. Its maximum rotational speed limit is 3000 to 3600 revolutions per minute, making it suitable for most belt drives, conveyor belt drums, fans and pumps applications. For higher rotational speeds, consider using a different bearing series or cooling options.
