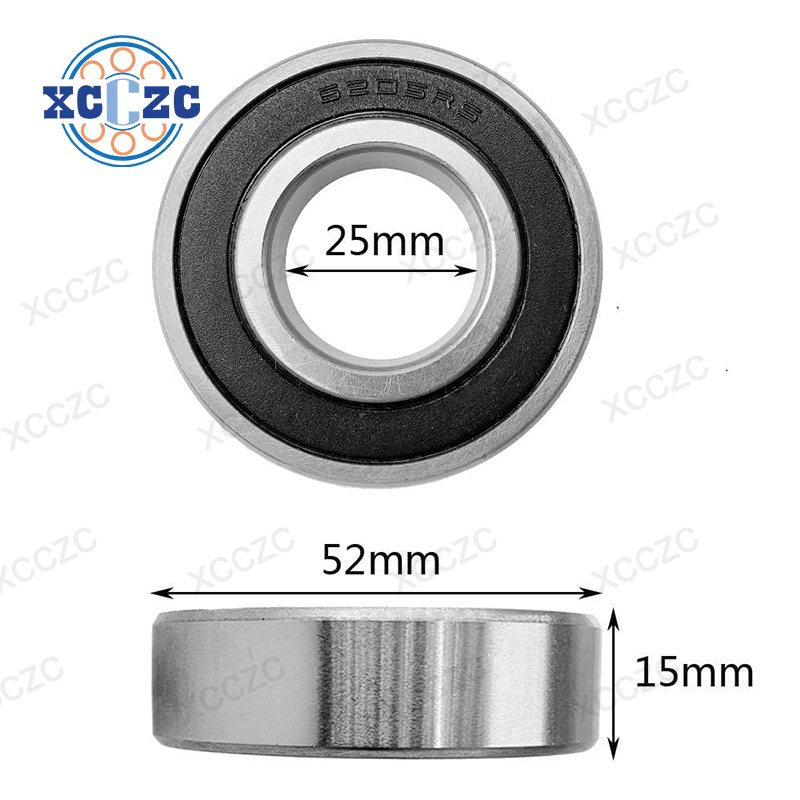

6205 25x52x15mm Chrome Steel Deep Groove Ball Bearing for Electric Motors Motorcycles

6205 Deep Groove Ball Bearing – Reliable Performance for High-Speed & Heavy-Duty Applications

When your machinery demands a bearing that combines high rotational speed, excellent radial load capacity, and dependable sealing, Die 6205 Deep Groove Ball Bearing is the industry-proven solution. Engineered from premium bearing steel and sealed on both sides with durable rubber, this bearing minimizes maintenance while maximizing uptime.

Hauptmerkmale:

• Hohe Belastung
  As a deep groove ball bearing, Die 6205 is optimized for radial loads but can also accommodate bidirectional axial loads (up to about 30% of the radial load rating). This versatility makes it suitable for a wide range of rotating machinery.

• Glatt & Quiet Operation
  Precision-ground raceways and grade 10 (or better) balls result in low vibration and noise levels. This is critical for applications like HVAC fans, home appliances, or any environment where noise pollution matters.

• High-Speed Capability
  Even with contact seals, Die 6205 can operate at speeds up to 8,000–12,000 RPM with proper grease.

• Interchangeable & Widely Available
  Der 6205 conforms to ISO dimensions, meaning it is a direct replacement for bearings from SKF, FAG, NSK, Timken, and other major brands. No need to modify your equipment.

• Cost-Effective Solution
  Compared to specialty bearings (angular contact, tapered roller), Die 6205 offers excellent value for money. You get reliable performance at a fraction of the cost – ideal for both OEM production and aftermarket repair.

Anwendungen

• Electric Motors
  Fans, compressors, washing machine motors, and general-purpose AC/DC motors.

• Pumps & Compressors
  Water pumps, hydraulic pumps, air compressors (radial load support).

• Conveyor Systems
  Roller bearings for belt conveyors, idlers, and material handling equipment.

• Landmaschinen
  Tillers, harvesters, balers, and irrigation systems.

• Automotive Components
  Alternators, tensioner pulleys, and some wheel hub applications (non-extreme load).

• Industriegetriebe
  Light to medium duty gearboxes where radial loads dominate.
• Heim & Office Appliances
  Ceiling fans, exercise equipment, and power tools.
